- Pressure Leaf Filter
The vertical pressure leaf filter having number of filter leaves (5 ply construction) is mounted on manifold. The complete set of vertical PLF consist of filter leaves, vibrator , manifold , vibrator assembly& cake discharge valve.
The head cover of vessels is often pivoted so that it is swung away to allow the upwards removal of the leaves in the stack. It is good practice to design a special rig that will support a leaf that is removed from the vessel.
Special quick opening bolts are fitted around the cover so that tightness is secured during operation but enable easy opening when access to the stack is required.
Range of filter sizes available from 1m2 to 100 m2 .

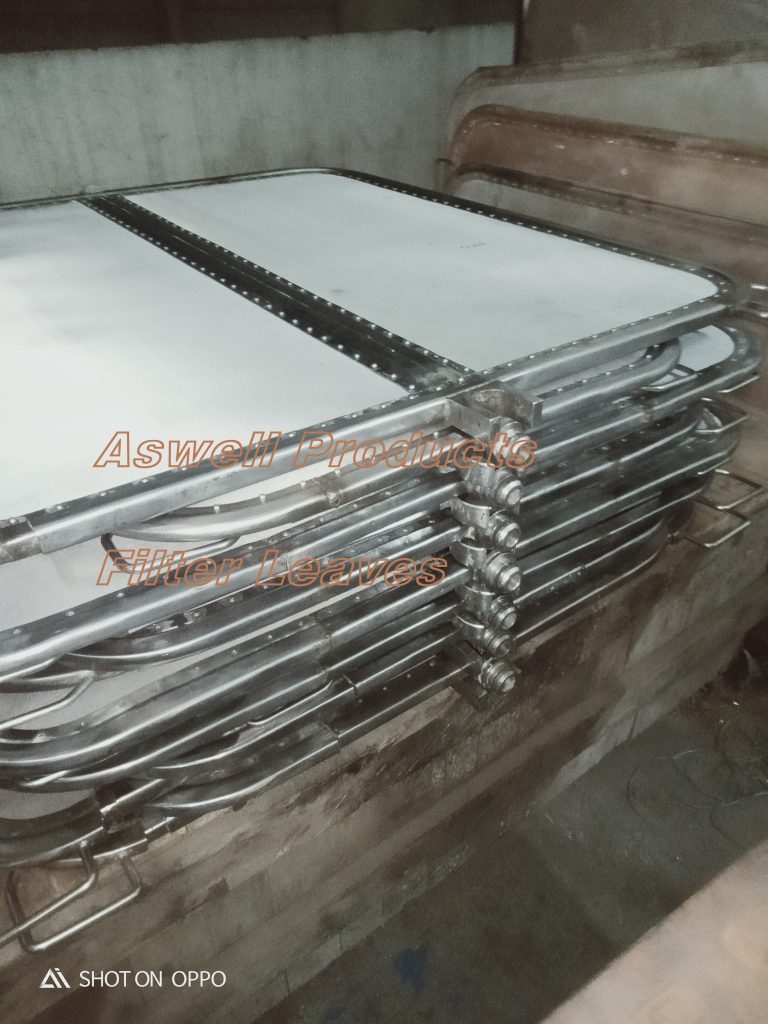

- Spare filter leaves
The leaf is constructed with ribs on both sides to allow free flow of filtrate towards the neck and is covered with coarse mesh screens that support the finer woven metal screens or filter cloth that retain the cake.
The space between the leaves may vary from 75-125 mm depending on the cake formation properties and the ability of the vacuum to hold a thick and heavy cake to the vertical leaf surface. The construction of the filter leaves are 5 ply with riveted and bolted type.
- Edible Oil Industries.
- Moltan Sulfur filtration
- Pharmaceutical Industries.
Chemical & Food Industries.

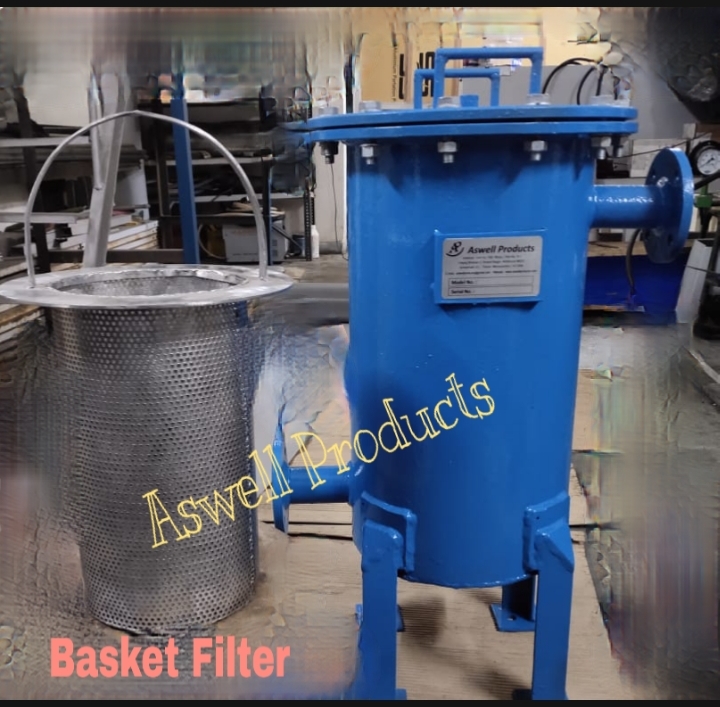

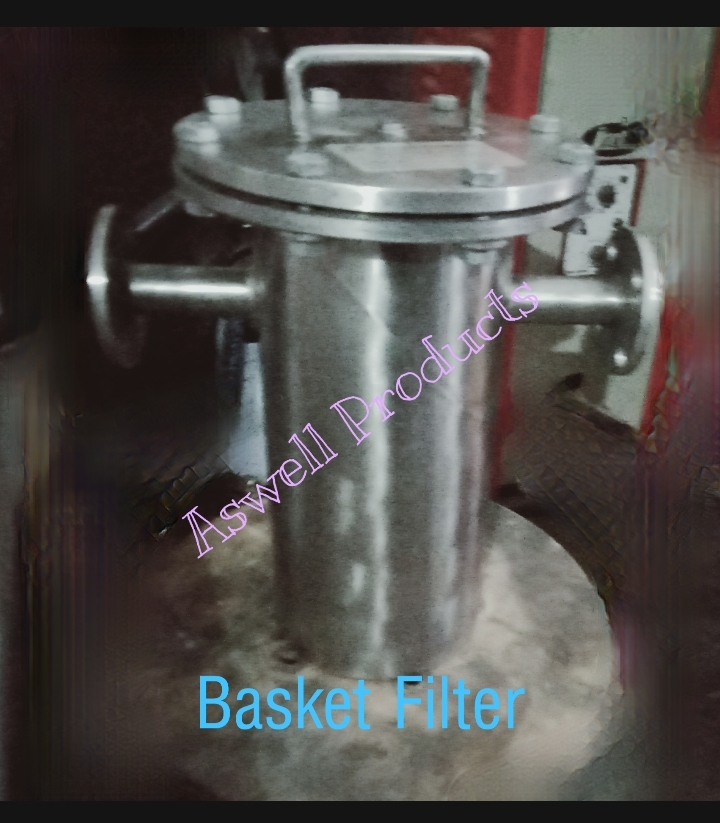

- Basket Filters/ Strainers
a)Simplex and Inlene Basket filters and strainers such as simples , duplex basket filters, Inline strainers to meet individual space or performance requirements.
We also supply spares basket and screens. Available material of construction in Carbon steel and Stainless steel.
b) Duplex Basket Strainer
Duplex basket filters is used in continuous operation. It is having interchangeable valves between two filter. duplex basket filter having easy tobasket removal arrangements. The end connection sizes from 1″ to 20 “

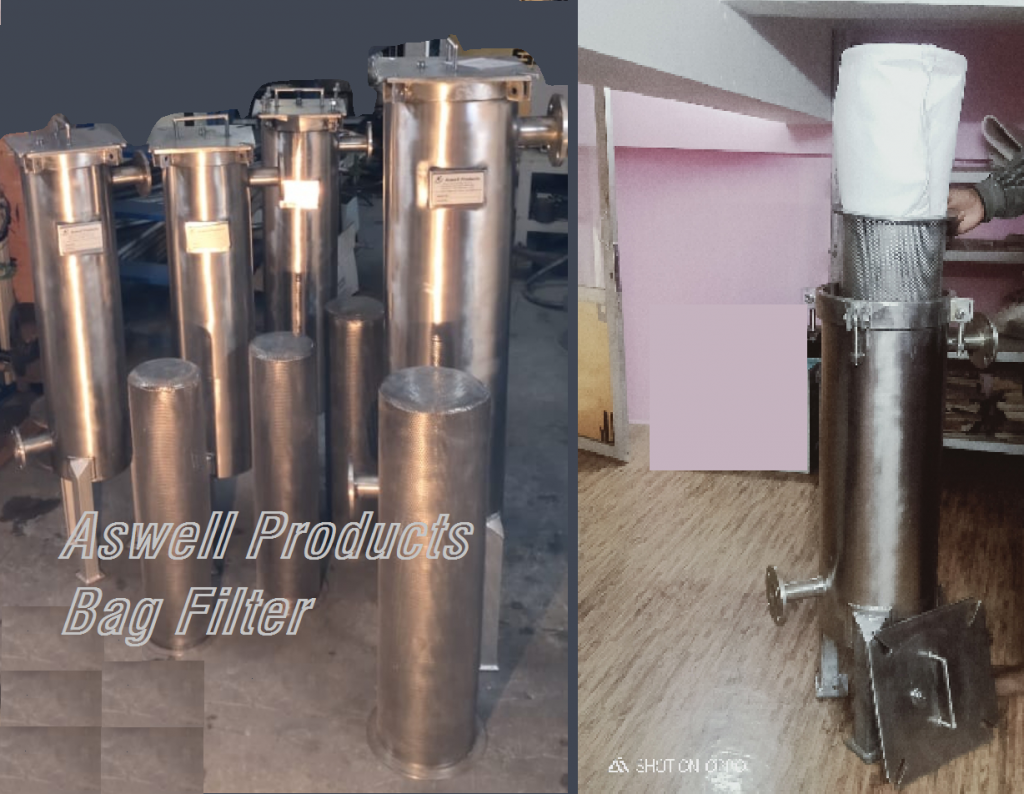

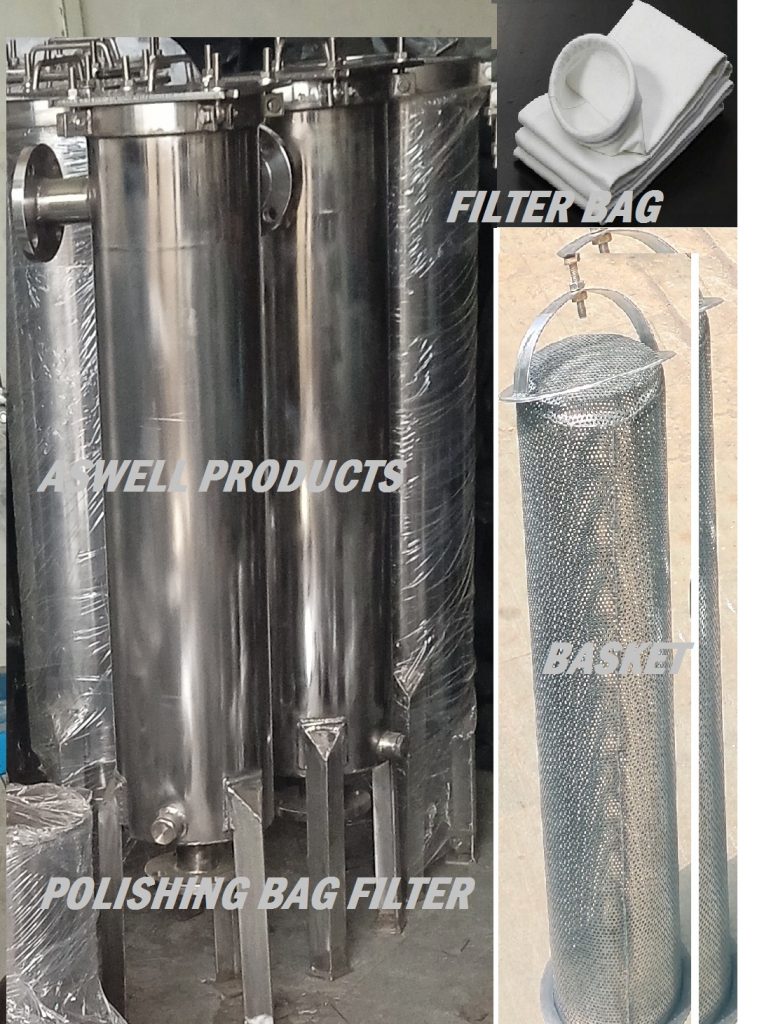

- Polishing Bag filters
Polishing filters such as single bag and multiple bag filters to meet individual space or performance requirements.
We also supply spares filter bag 5 to 10 micron in PP , Nylon , PE materials. Available material of construction for filter vessel in Carbon steel and Stainless steel.
- ‘y’ type, ‘T’ type and conical Strainers
We manufacture fabricated type strainers such as y type ,T type and conical type strainers.
We also supply spares element and screens. Available material of construction in Carbon steel and Stainless steel.
- Sparkler Filter:
Aswell offers wide range of quality Sparkler Filters .Zero hold up filter press, Material construction of sparkler filter is PP,SS304 , SS316. Available range of sizes- 8” 14” , 18” & 24’dia. Filtration efficiency from 1 micron to 10 micron.
- Filter Press/ Plate & Frame Filter
Aswell Manufacturers and supplier of competitive range of Filter press. These are manufacturer using non woven and woven filter media. We also provide our range in various sizes and dimensions that meet the individual requirement of our clients

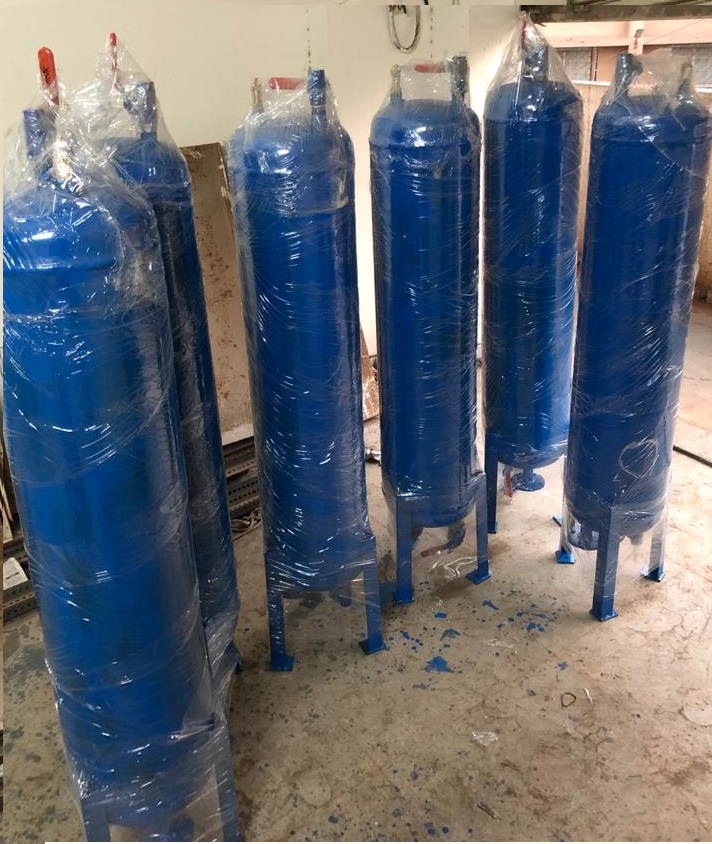

- Air Vessel
Aswell offers superior quality of High pressure Air Receiver tank for Safety and industrial use. Material of construction of the vessel is in CS/ M.S. Available sizes-30 liters to 5 m3.

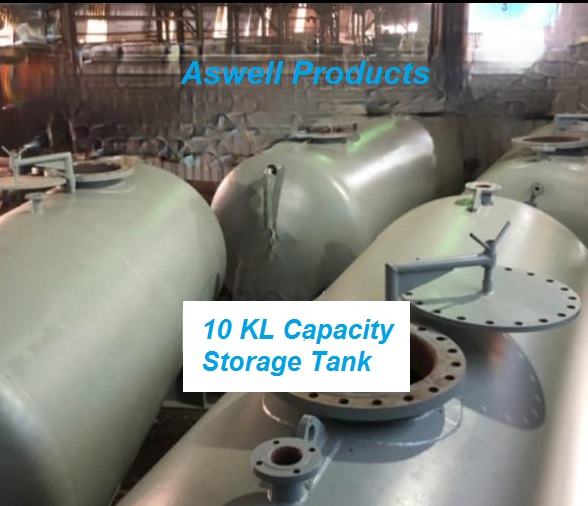

Storage Vessels/ Tank
Aswell offers superior quality of storage / pressure vessel and tank. We manufacture vesses for any use, application or environment. Material of construction of the vessel is in SS304, SS304L , SS316

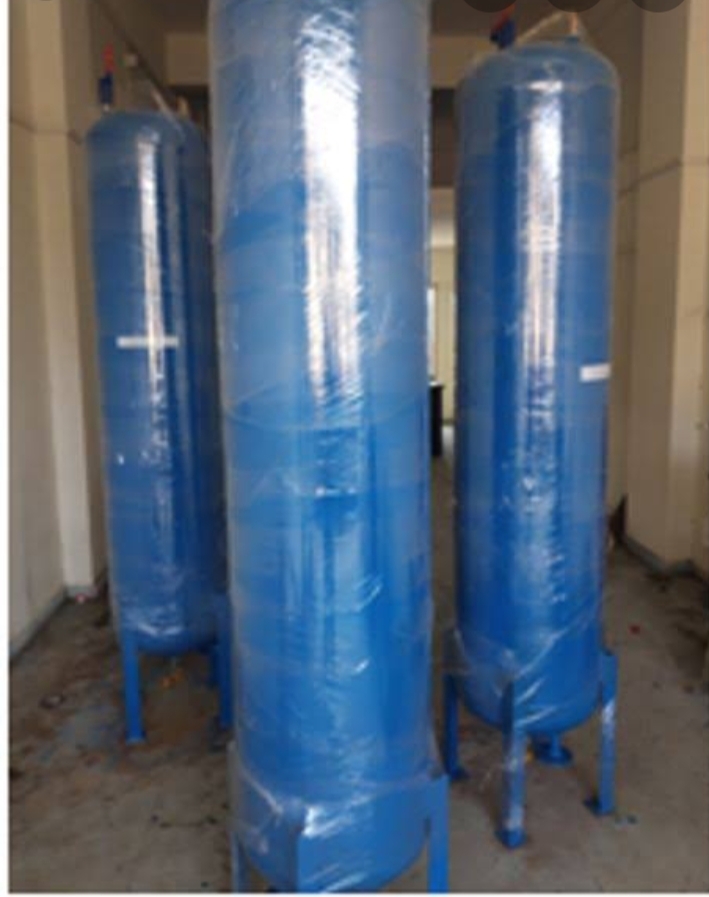

- Air Receiver tank for Fire & Safety
Aswell offers superior quality of High pressure Air Receiver tank for Safety and industrial use. Material of construction of the vessel is in CS/ M.S. Available sizes-30 liters to 5 m3.

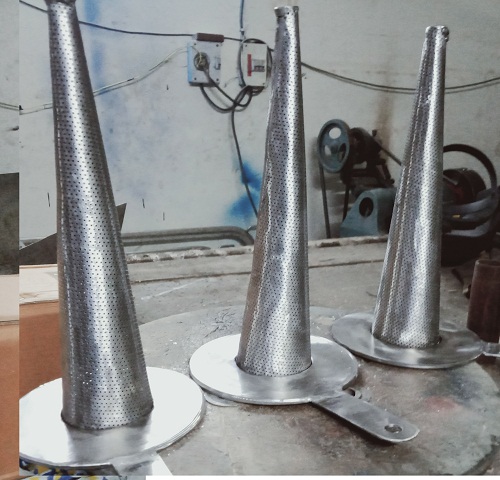

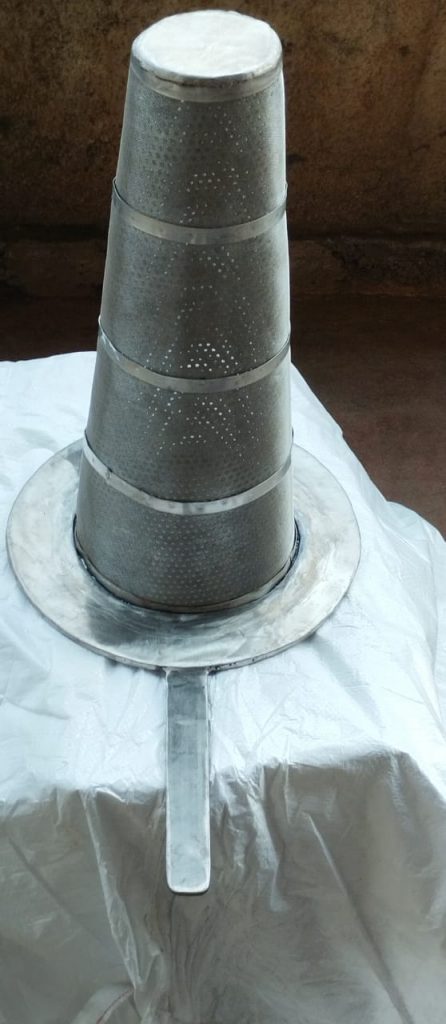

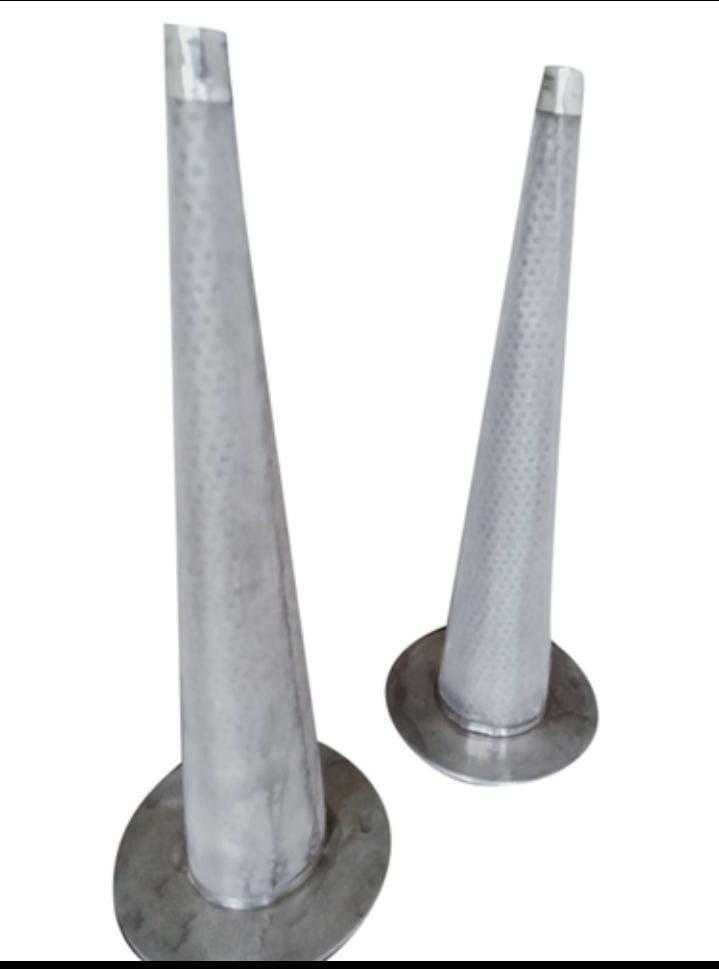

- Conical or Temporary Stariners
Aswell manufacture various type of Conical strainers. Material of construction of conical strainers in M.S., SS304, SS316 & Monel . available sizes range from 1″ to 20.

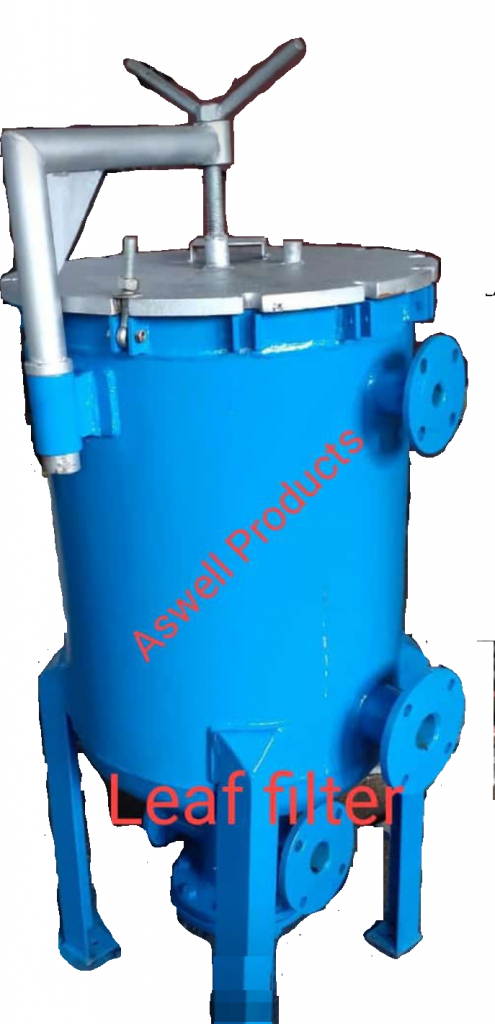

- Jacketed Pressure Leaf Filter
The Jacketed vertical pressure leaf filter having number of filter leaves (5 ply construction) is mounted on manifold. The complete set of vertical PLF consist of filter leaves, vibrator , manifold , vibrator assembly& cake discharge valve.
The head cover of vessels is often pivoted so that it is swung away to allow the upwards removal of the leaves in the stack. It is good practice to design a special rig that will support a leaf that is removed from the vessel.
Special quick opening bolts are fitted around the cover so that tightness is secured during operation but enable easy opening when access to the stack is required.
